MDP-XP Mini Laboratory Programmable Linear Power Adjustable Digital P906 Power Supply 30V 5A DC-DC CV CC Output 90W Meter Module

Regular price $144.99
Unit price  per
Tax included. Shipping calculated at checkout.

MDP-XP 30V 5A Adjustable Digital DC Power Supply 90W Mini Programmable Linear Power Module CV CC Output for Laboratory Phone Repair

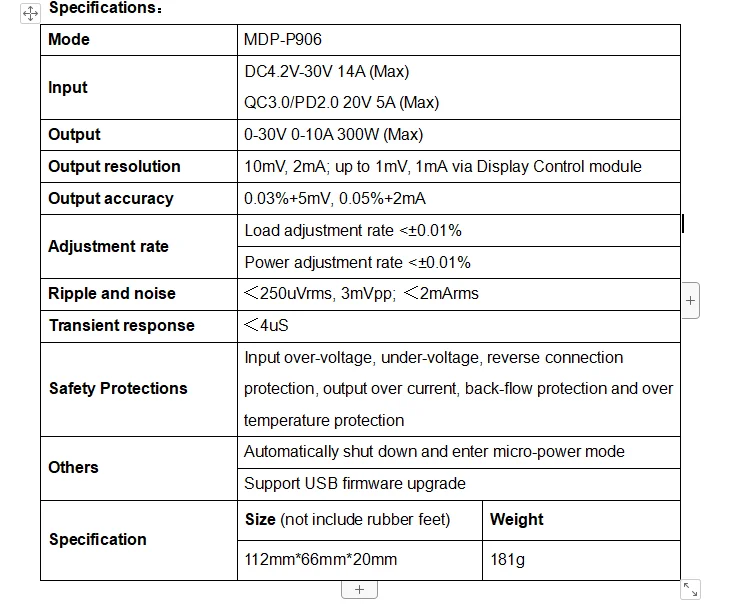

MDP-P906 is the second digital power supply module of MDP series, following MDP-P905. MDP-P906 has a built-in cooling fan, and a maximum output power up to 300W, which meets a wider range of testing needs and application scenarios. Through 2.4G wireless communication, it can be connected to MDP-M01 SmartDigital Monitor module to realize the free combination of multiple channels of 300W per channel, and it is alsostackable with MDP-XP set (MDP-M01+MDP-P905) to form a multiple modular portable Mini digital power system.

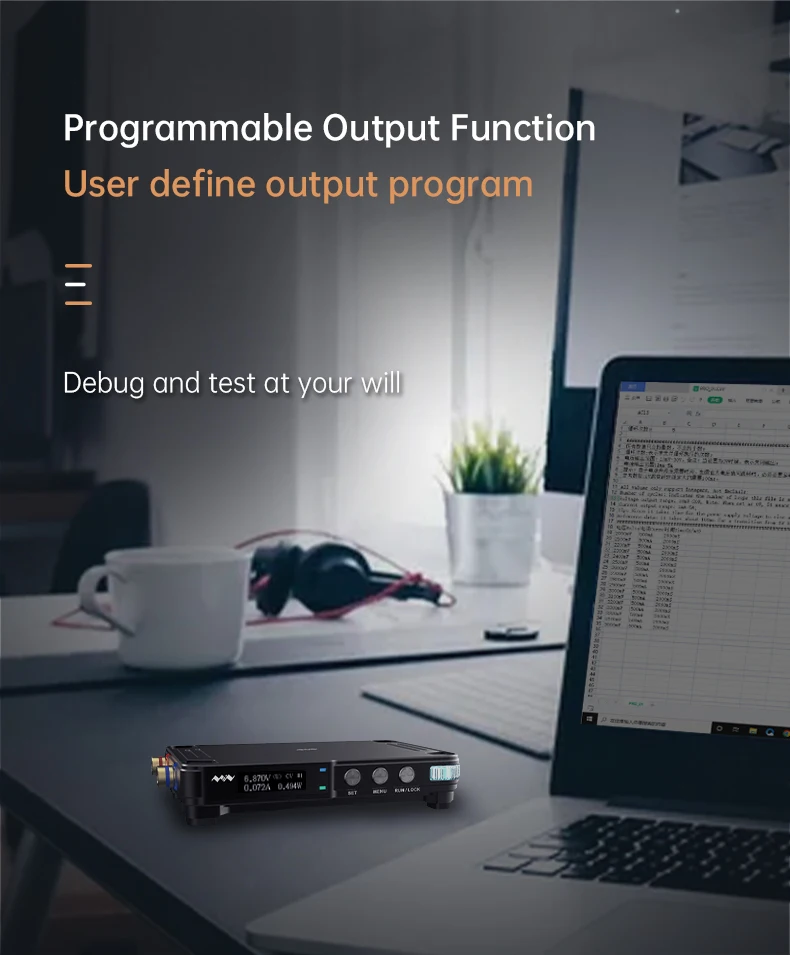

MDP-P906 has the index, stability and reliability comparable toa professional power supply. It can output pure current, and provide powerful functions such as programmable output, timing output, timing control, automatic compensation, boost mode, etc., making itself a real cost-effective, smart and customized programmable linear DC power supply.

MDP-P906 adopts precision CNC machined aluminum alloy shell, with fine workmanship, novel, mini and beautiful appearance,it completely subverts the rigid image of traditional desktop power supply. With stackable modular design and wireless communication function,MDP-P906 can work independently or paired, both on the workbench, and be carried out for on-site maintenance. MDP-P906 is a perfect solutionfor electronic engineer, especially field application engineers to meet different needs of power sources.

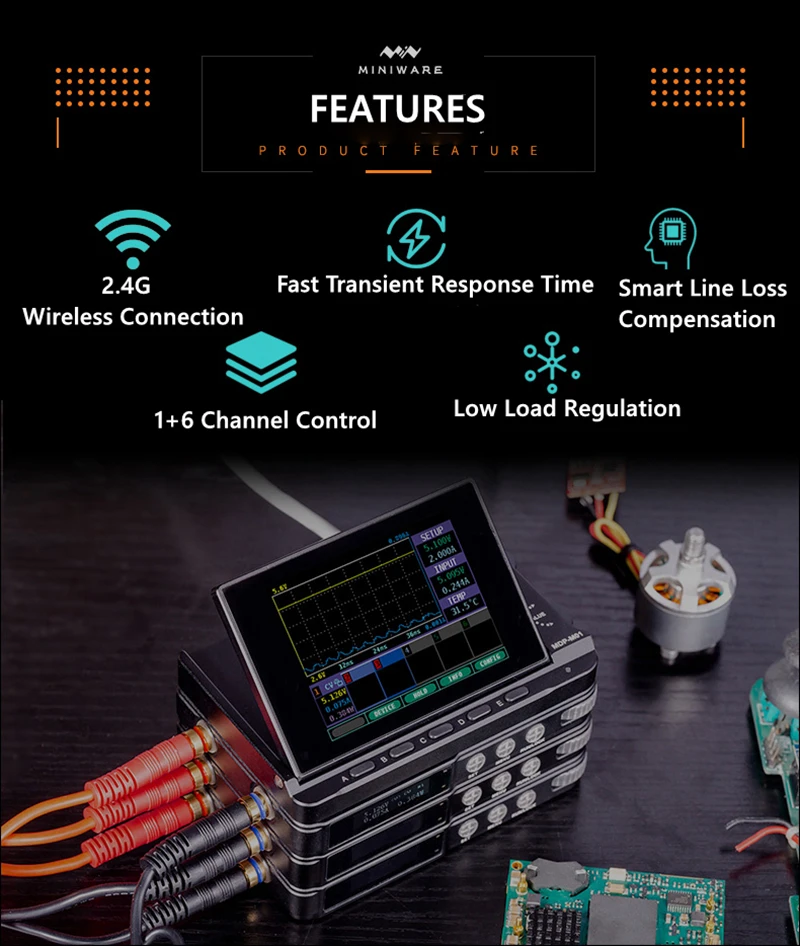

Product Features:

2.4G wireless connection, supportingwireless connection to Display Control module

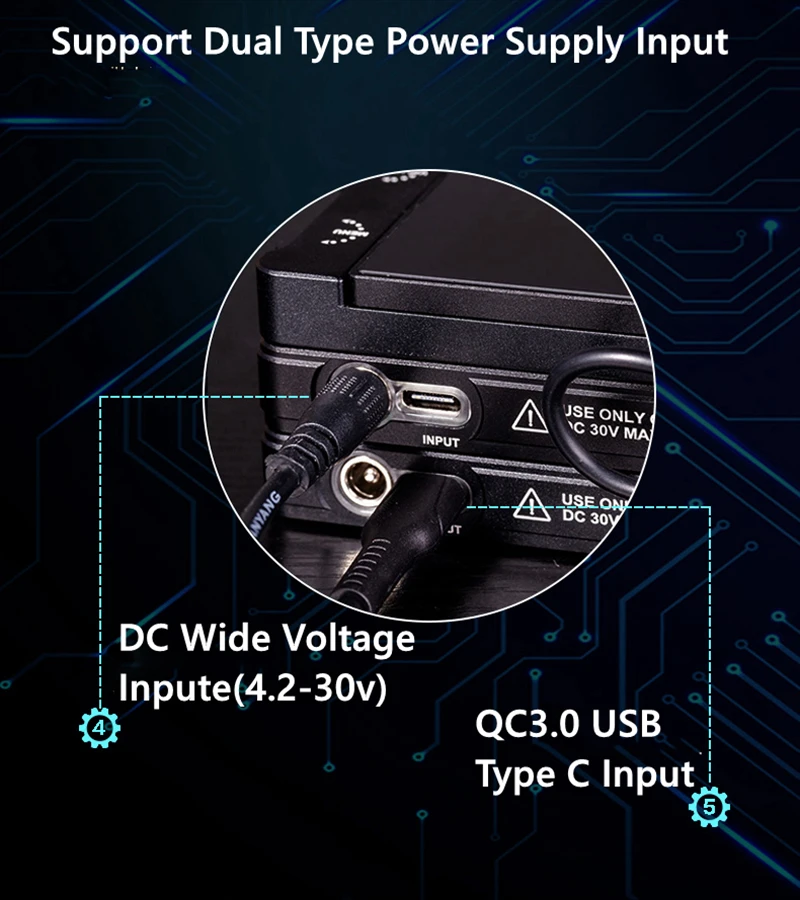

DC wide voltage input between 4.2V- 30V

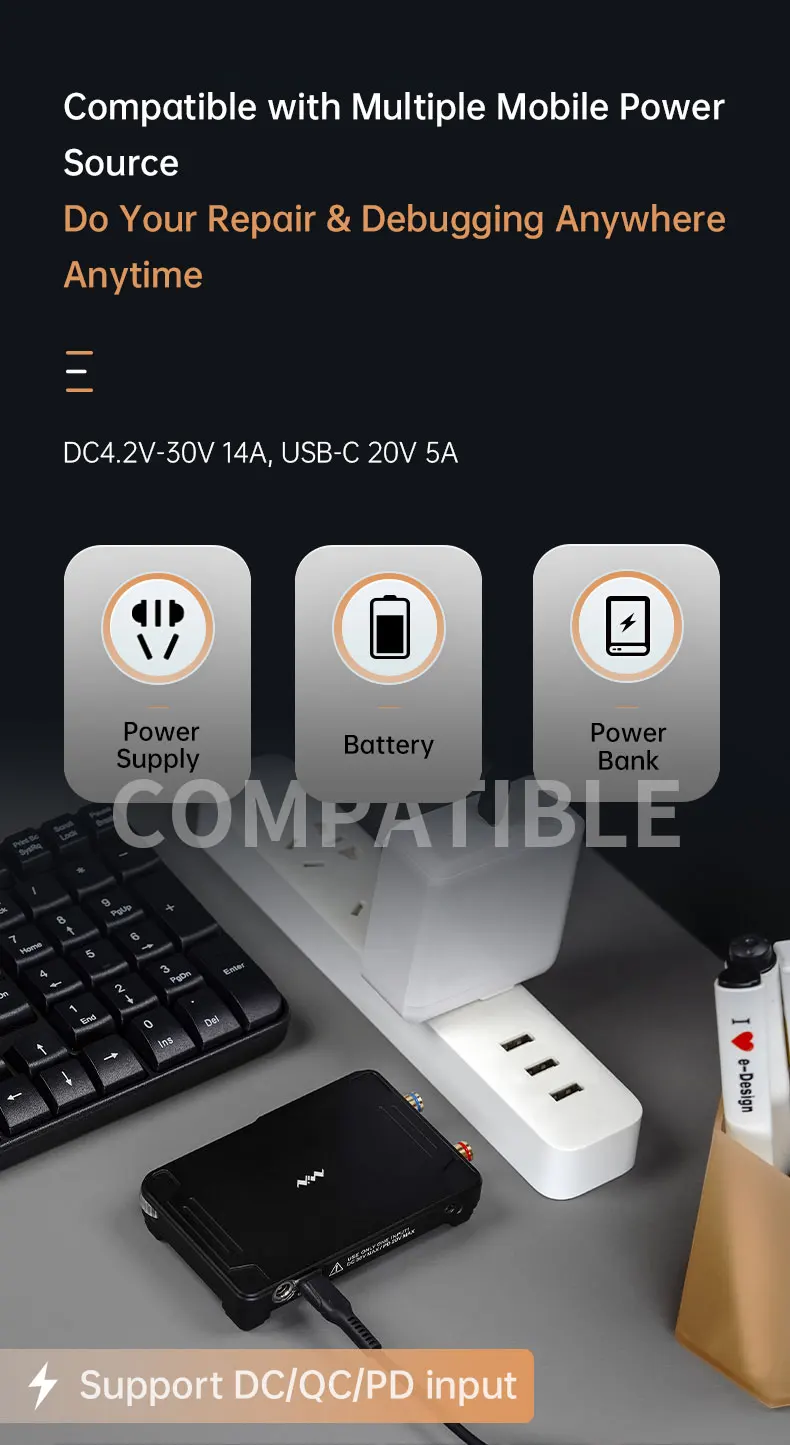

Support Max 20V QC/PD input

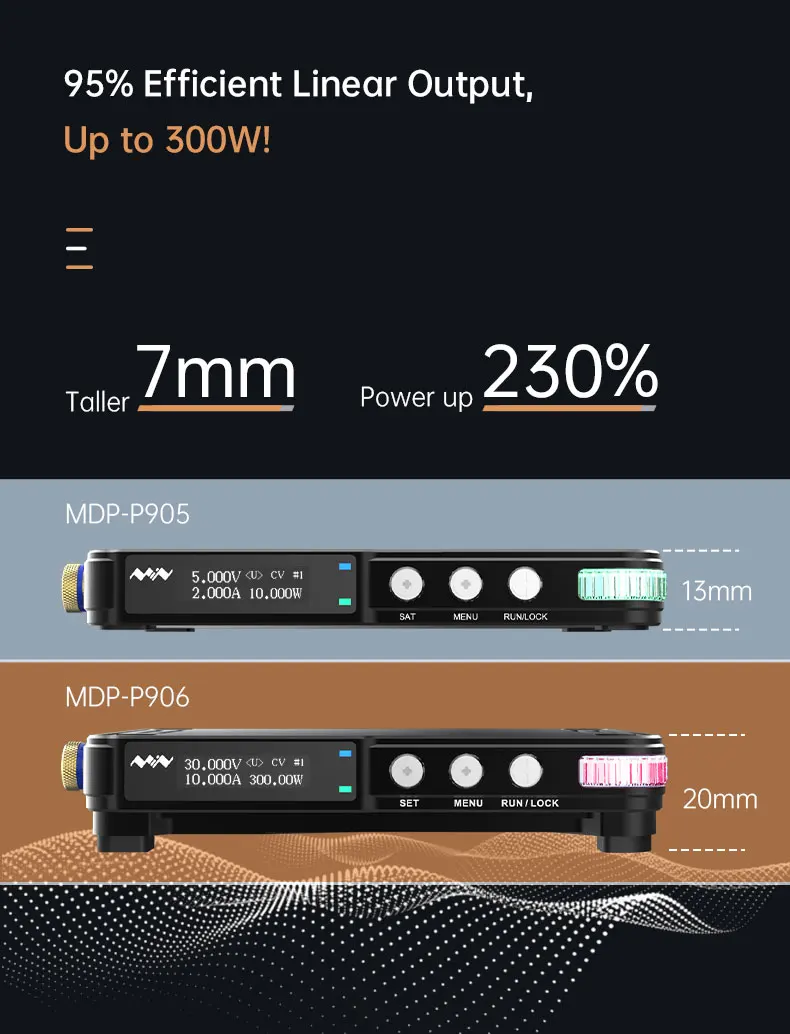

95% High efficiency programmable linear output, max 300Wpower output

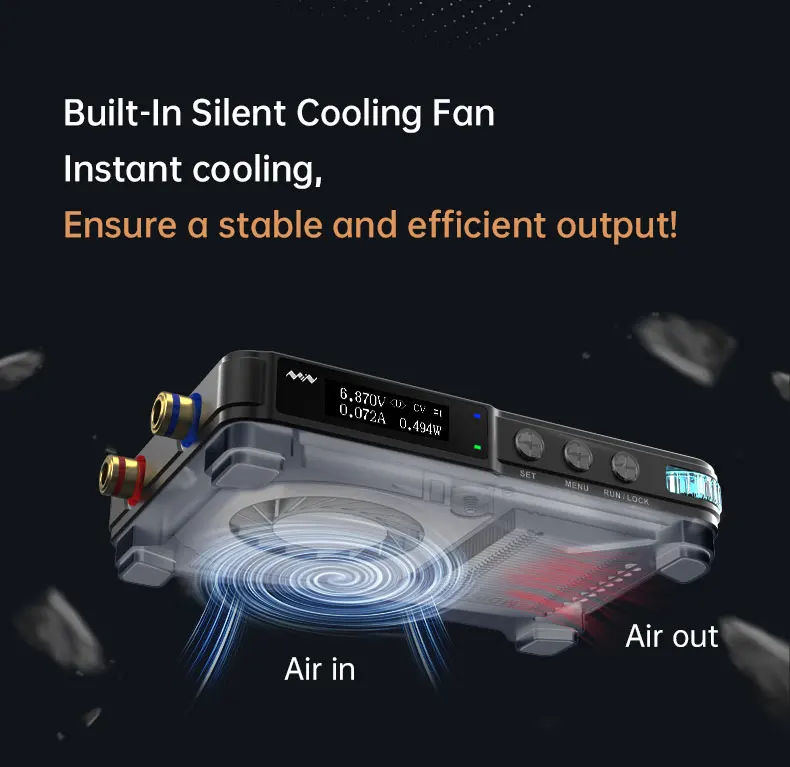

Built-in low noise & high-speed cooling fan

Ultra high-speed transient response& ultra low ripple and noise

Extremely low load regulationrate with smart linear loss compensation

Support Boost mode, highly reliable for various electrical devices

Supportmultiplein-series and in-parallel connectionto output higher voltage

Safety Protections:input over-voltage, under-voltage, reverse connectionprotection, output over-current,backflowprotection and overtemperatureprotection

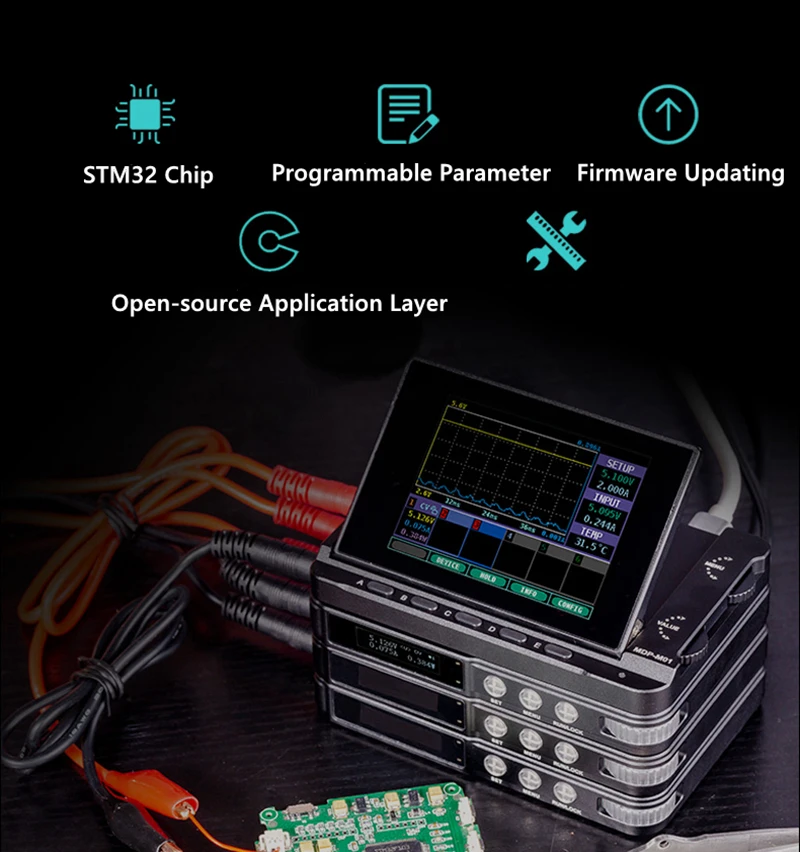

Support firmware upgrade


Applications:

- Universal tests and teaching experiments in R&D laboratory

- Maintenance of cellphones, laptops and other digital devices

- Power supply testing and data logger of RF, microwave circuits and other modules

- Provide purified power for high-accuracy digital-analog hybrid circuits and Hi-Fi audio devices

- Performance verification and fault diagnosis of devices and circuits

- Quality control and quality inspection

- Emergency power supply for RC models, vehiclesand digital devices

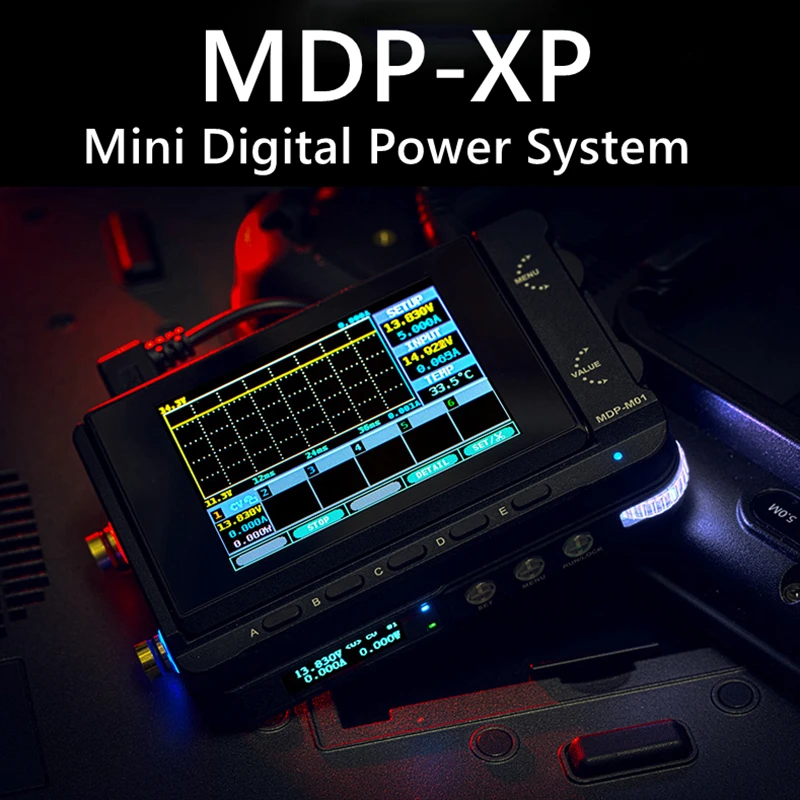

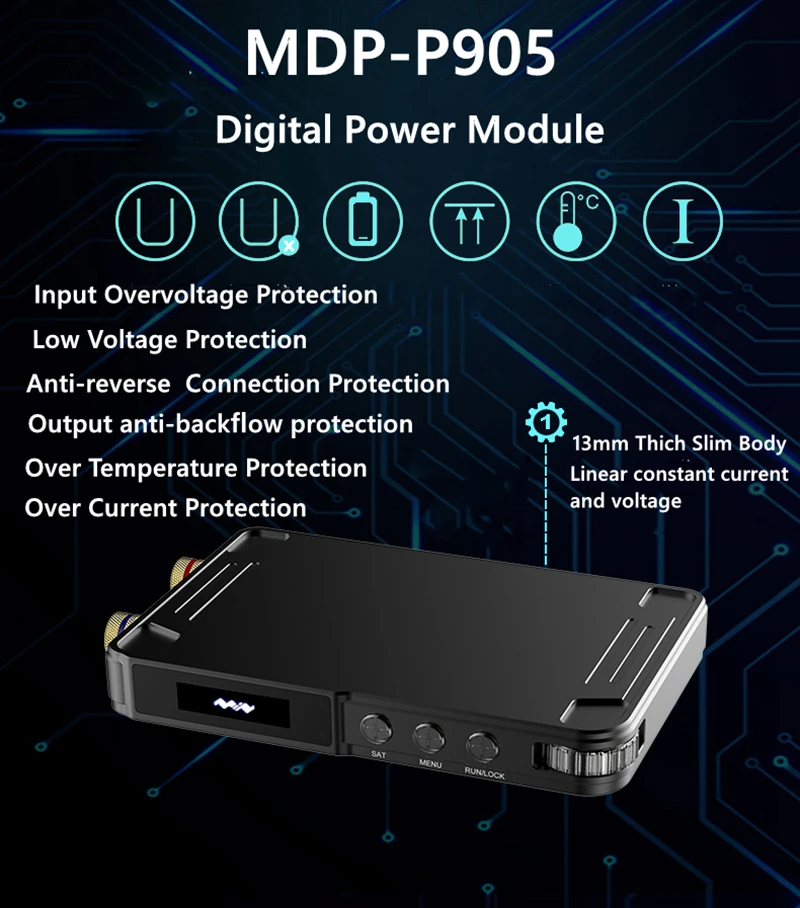

MDP-XP POWER MODULE

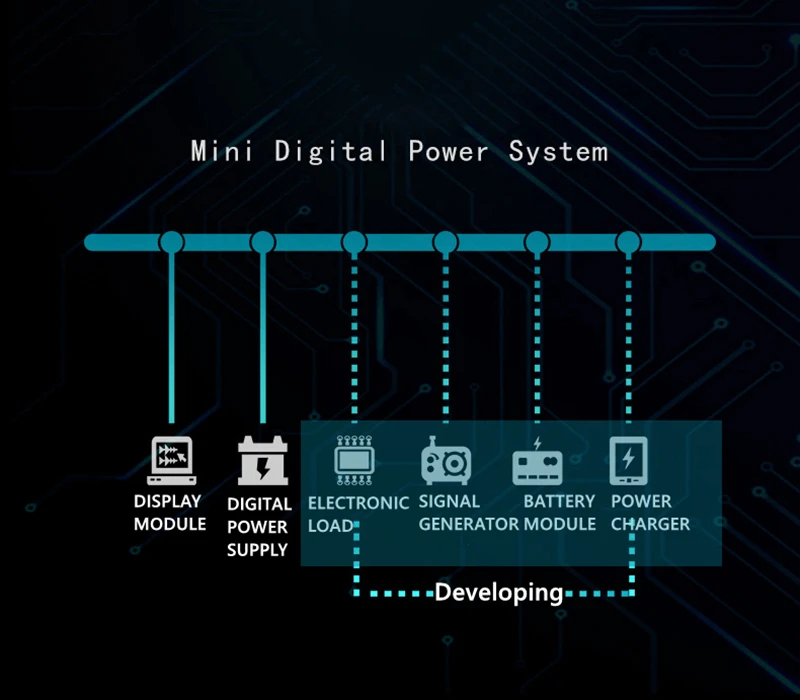

Just have a glance at the big traditional DC power supply on your worktable, have you ever dream that there could be a small one to save your space. now this supper mini programmable digital linear DC power supply deserve to own. MDP (Mini Digital Power System) is a system of programmable linear DC power supply based on modular design with Display Control Module and Power Control Model through 2.4Ghz wireless connection and support up to 6 channels output when more power supply mode connected to achieve multichannel free combination at the power of 90W per channel. It support DC4.2V-30V 100mA-6A input and 90W 30V/5A maximum adjustable output with 2.8 inch TFT screen display the voltage-current waveform and output parameter in real time which is super convenient to monitor. It support CV CC output with Extremely low load regulation and intelligent line loss compensation,High-speed transient response and over current protection, as fast as 4uS perfect for laboratory test usage, cell phone, computer or other digital products repair,Power supply testing and data logger of RF and microwave circuits or modules.



Specifications:

-Input Power: DC4.2-30V(2.7V after Start-up),100mA-6A

-Output: 30V 5A 90W(Max. per channel

-Adjustment Rate: <±0.01(Power), <±0.01 (Load)

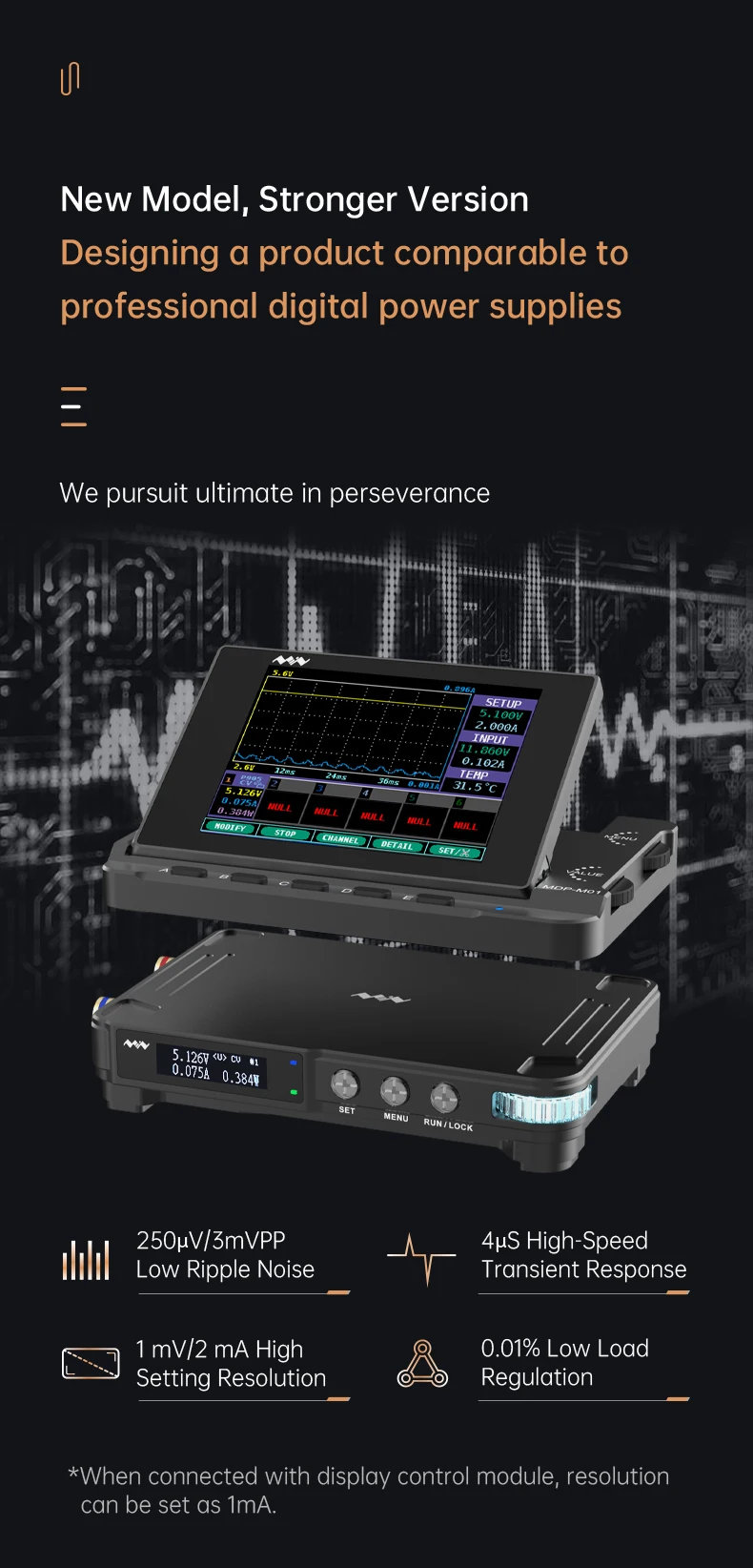

-Ripple and Noise: 250uVrms/3mVpp

-Transient Response Time: ≤4uS

-Line Loss Compensation Range: 5mR-100mR

-Date Record: 7Mb Max. Storage and 24 hours Max. Time

-Protection Support:
Input:over-voltage, under-voltage, anti-reverse
Output: anti-backflow, over temperature

-Size:
101.5x64x12mm/4x2.5x0.47inch(Dispaly Control Model)
107x66x13.6mm/4.2x2.6x0.54inch(Digital Power Model)

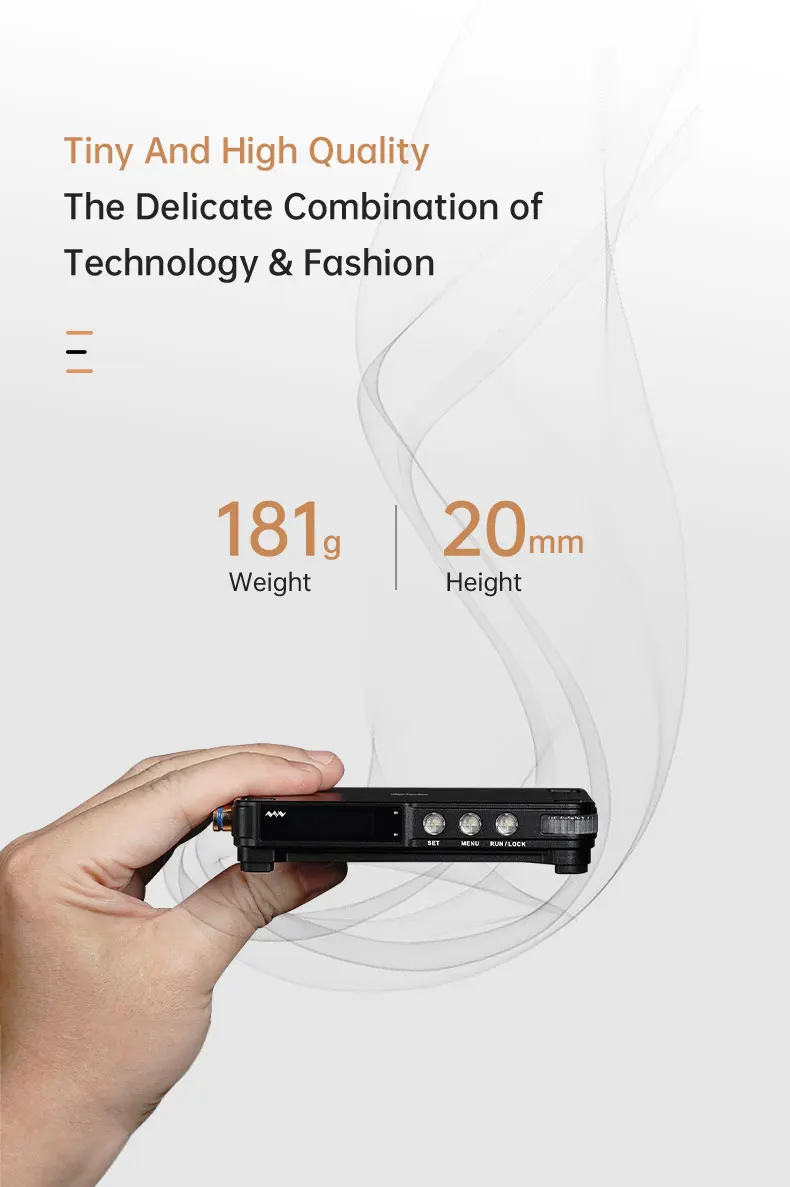

-Weight:133g(Display Control Model), 143g(Digital Power Model)


Features:

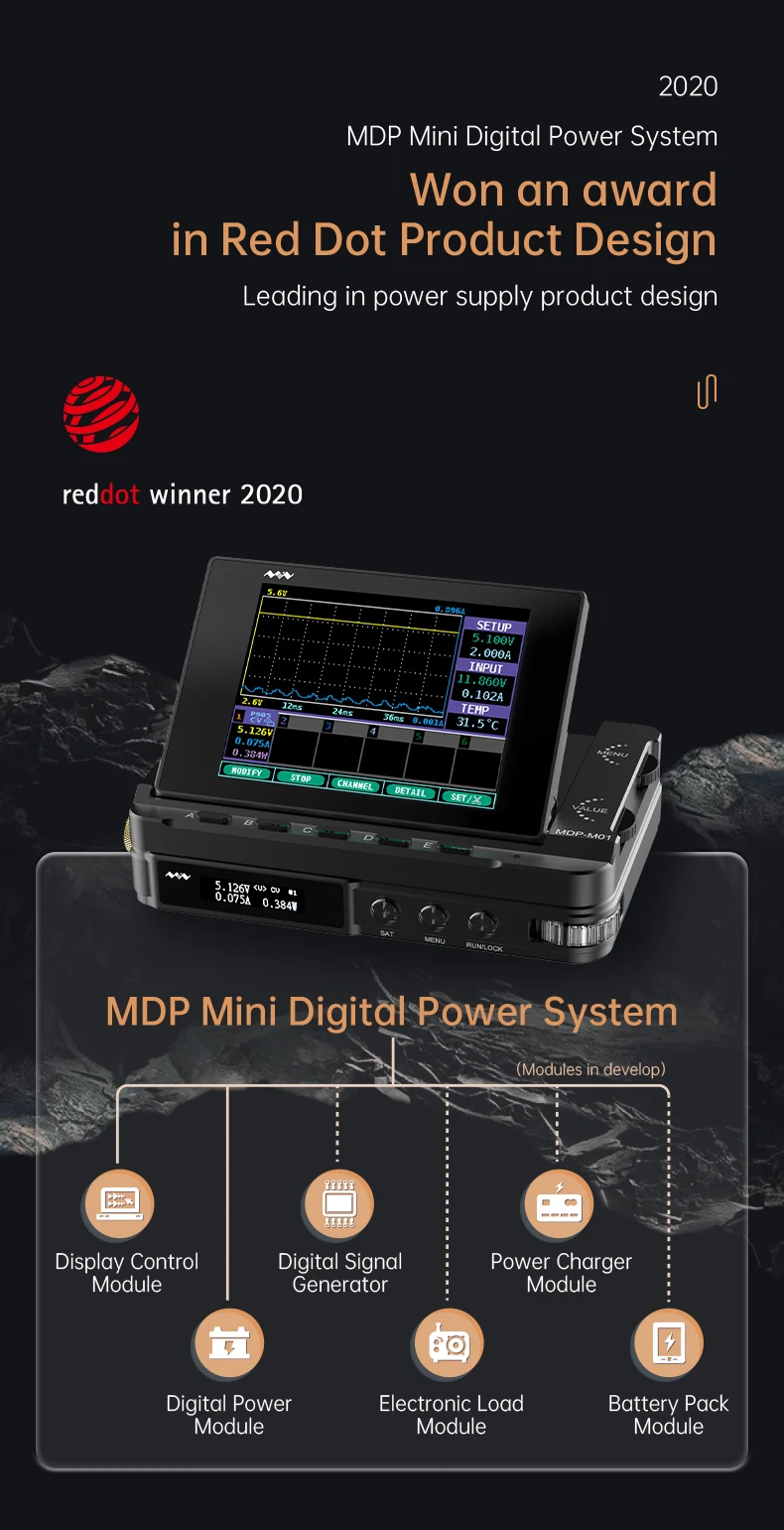

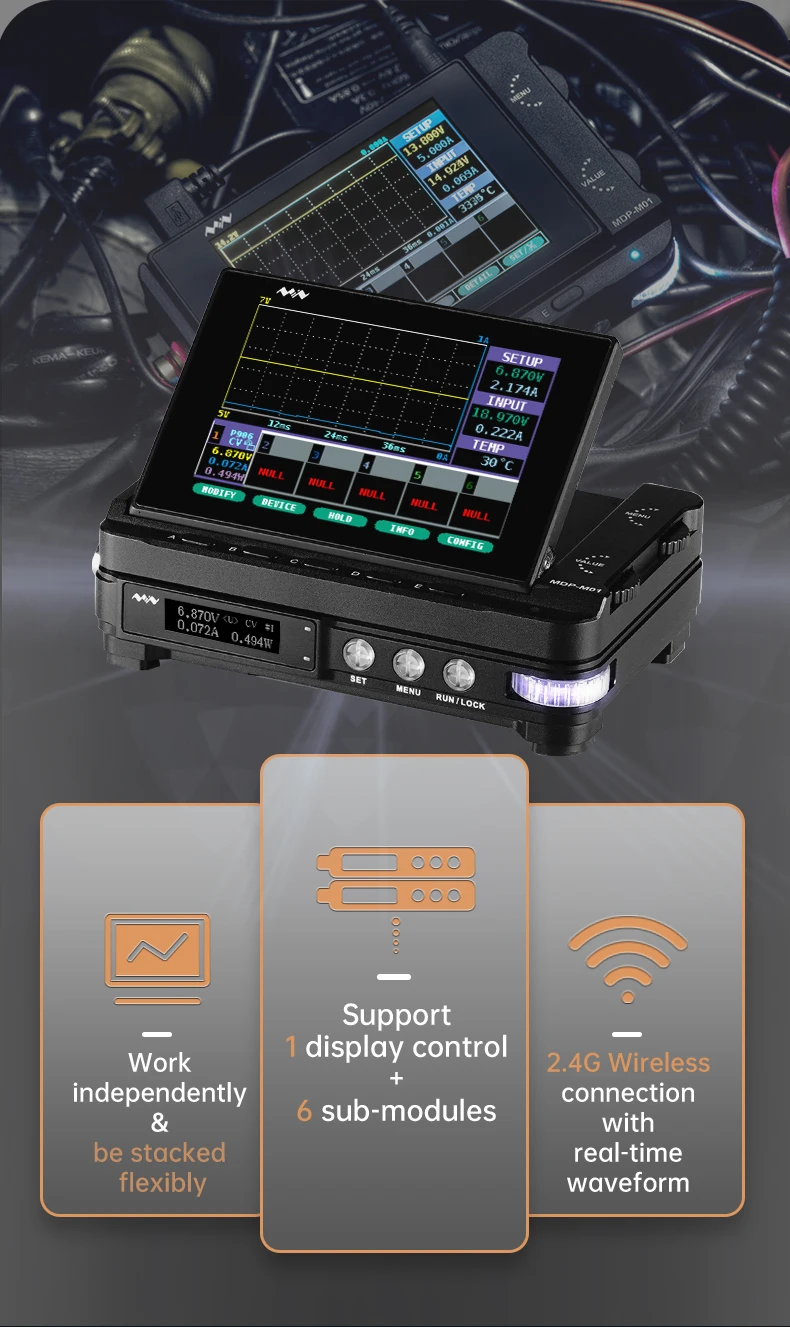

1)Modular design with MDP-M01 Display Control Module and MDP-P905 Digital Power Model through 2.4Ghz wireless connection and support up to 6 channels output when more power supply mode connected to achieve multichannel free combination at the power of 90W per channel

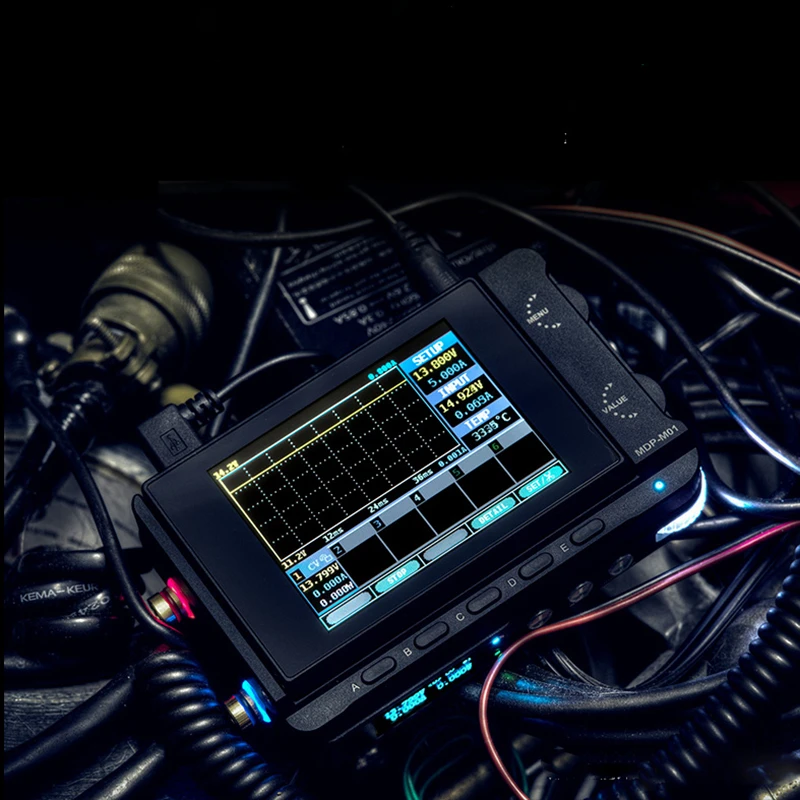

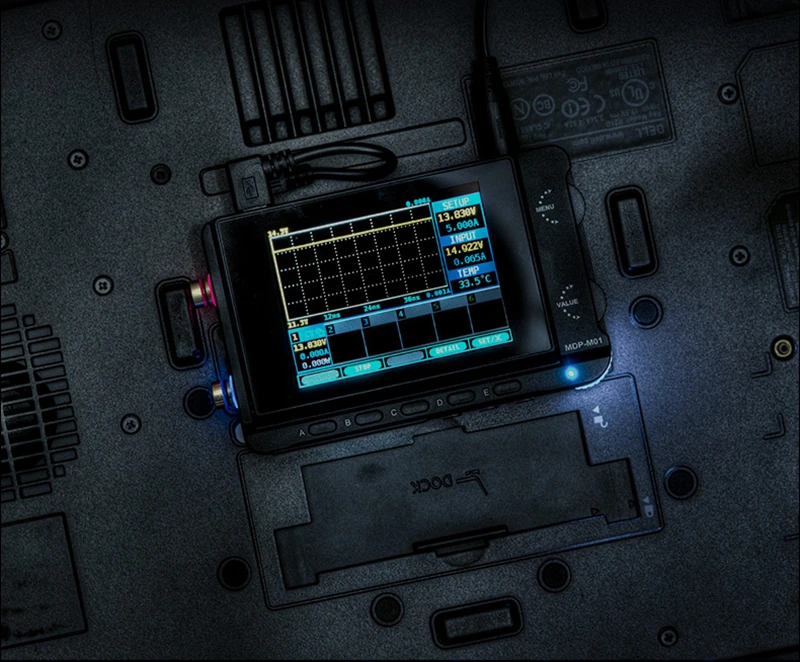

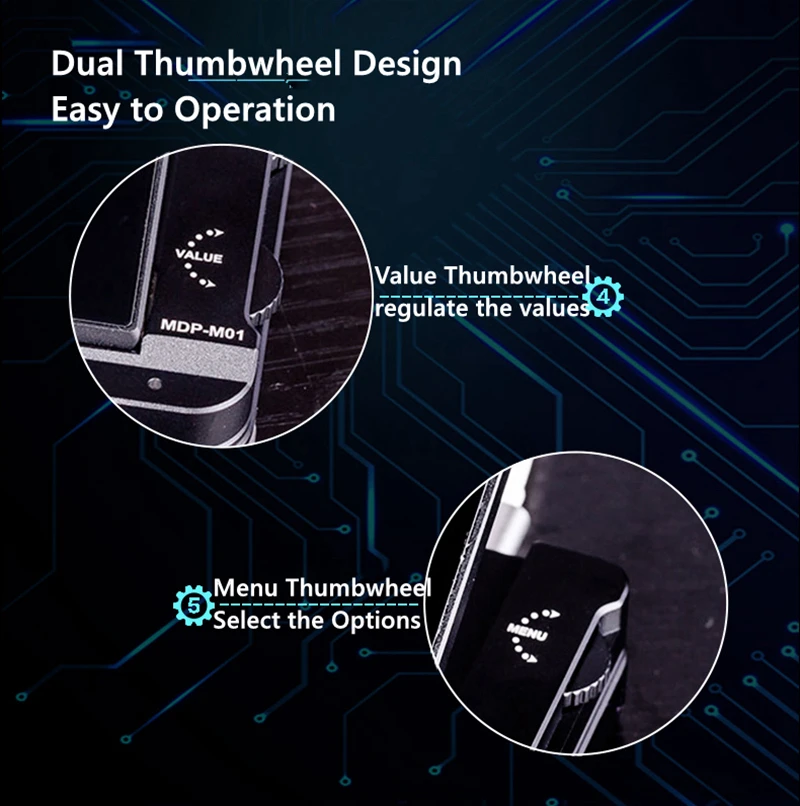

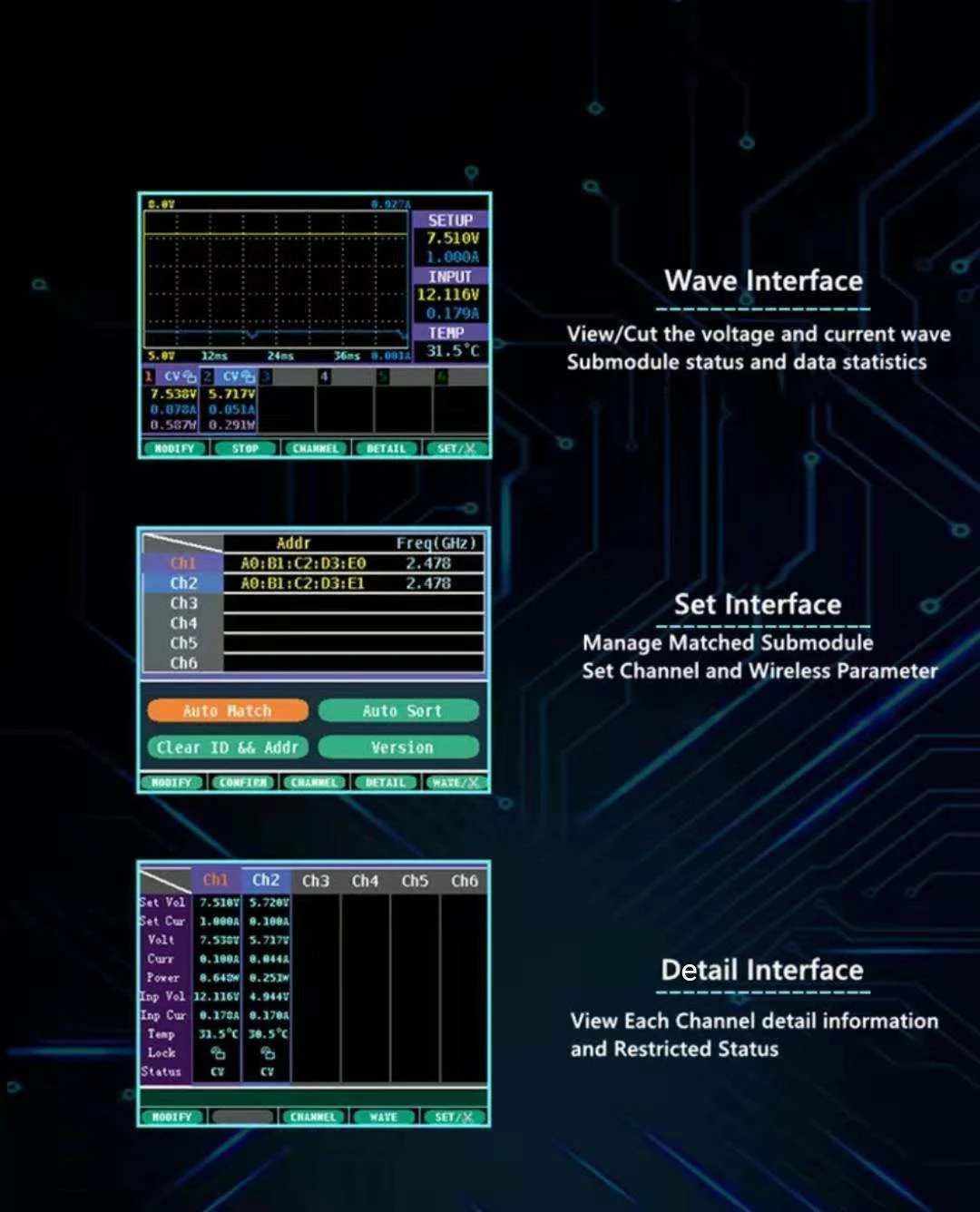

2)2.8 inch TFT screen display the voltage-current waveform and output parameter in real time with dual thumb wheels and 90-degree scrolling screen which is super convenient to monitor and operation

3) DC 4.2-30V 100mA-6A wide range input and max. 30V 5A 90W CC CV adjustable output per channel with input over-voltage protection, under-voltage protection, anti-reverse connection protection and output anti-backflow protection, over temperature protection, over current protection

4)High-speed transient response and over current protection, as fast as 4uS, Extremely low load regulation and intelligent line loss compensation

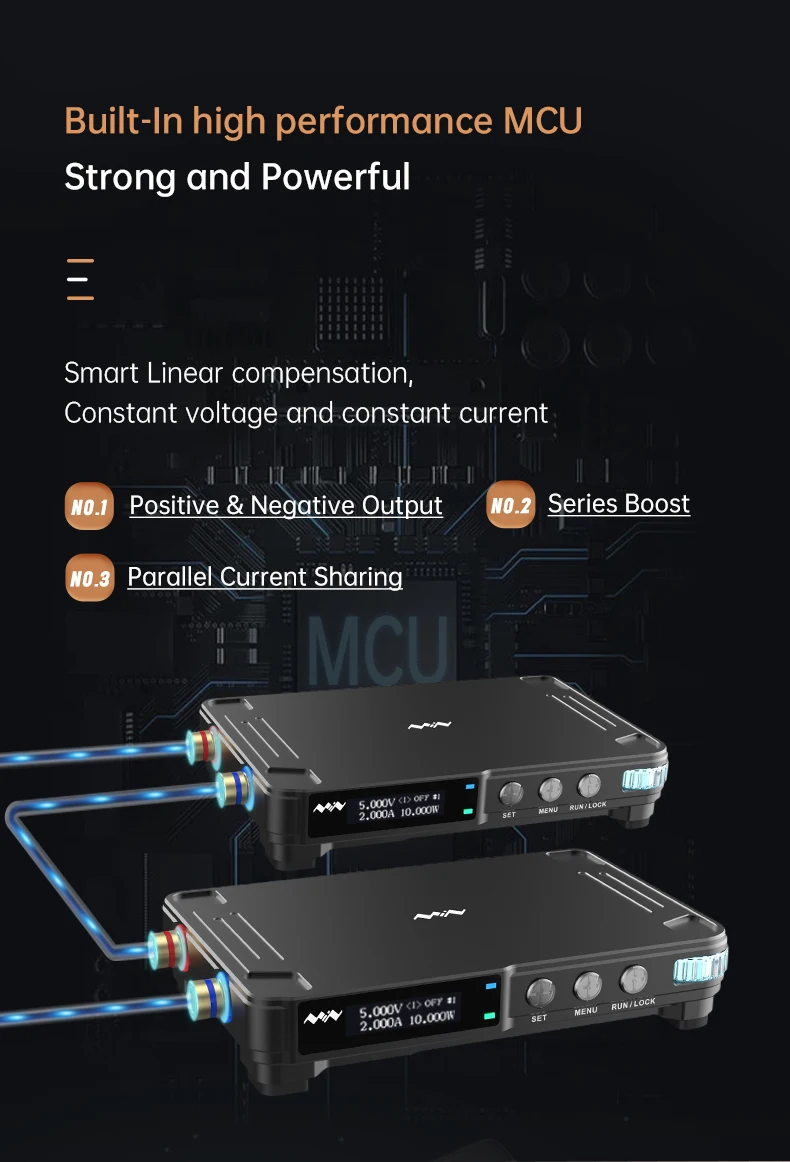

5) Support positive & negative pressure, series pressurization, parallel current sharing, free combination of collaborative load, and intelligent power allocation

6) Support data record with max. 7Mb recording storage and hours recording time

7)high cost-effective programmable linear DC power supply, featuring indicators, stability, reliability and distinct user interface comparable with professional linear DC power supply


Applications:
-Universal tests and teaching experiments in R&D laboratory

-Maintenance of cellphones, laptops and other digital products

-Power supply testing and data logger of RF and microwave circuits or modules

-Supply purified power for high-accuracy digital-analog hybrid circuits and Hi-Fi audio devices

-Property verification and fault diagnosis of devices and circuits

-Quality control and quality inspection

-Emergency power supply for model airplanes and vehicles


Package Included:
1X MDP-M01 Display Control Model

1X MDP-P905 Digital Power Model

1X Power Cable Set(3pcs)

1X English Manual
