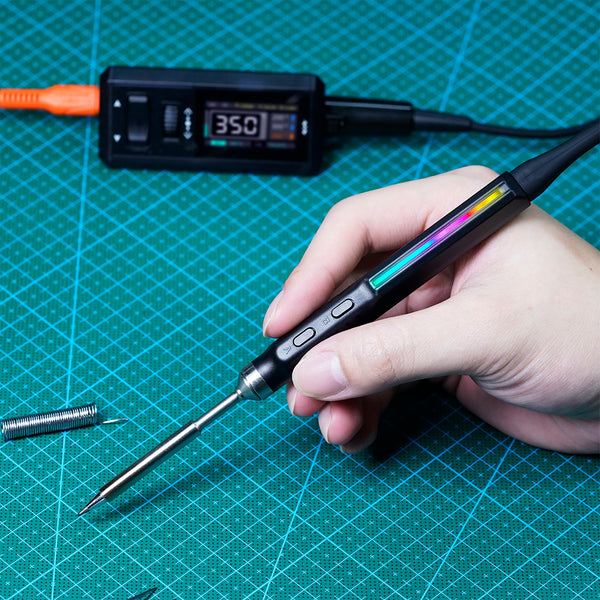

The MINIWARE TS1M multifunctional mini soldering station, developed by e-Design, delivers a powerful and convenient soldering experience in a compact form.

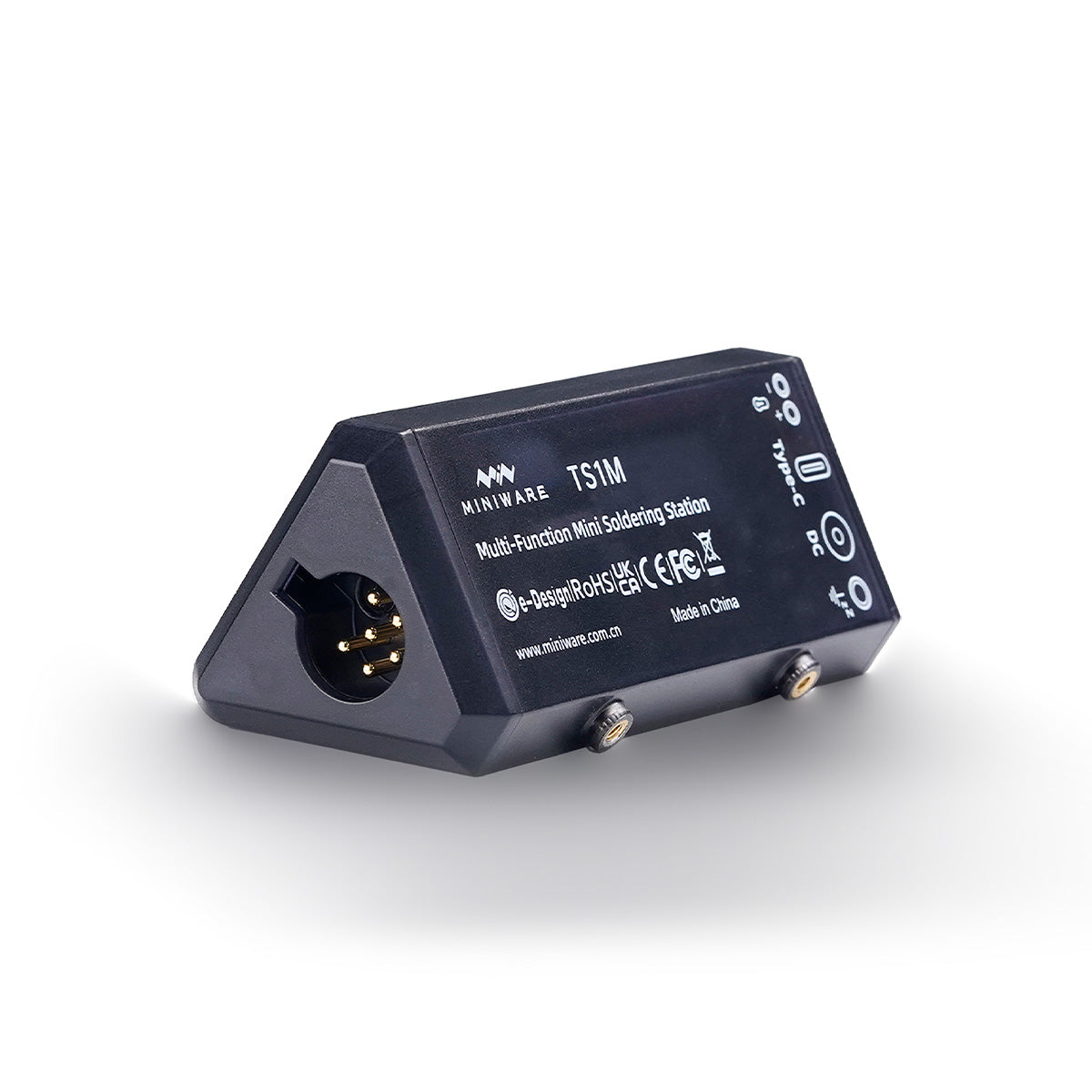

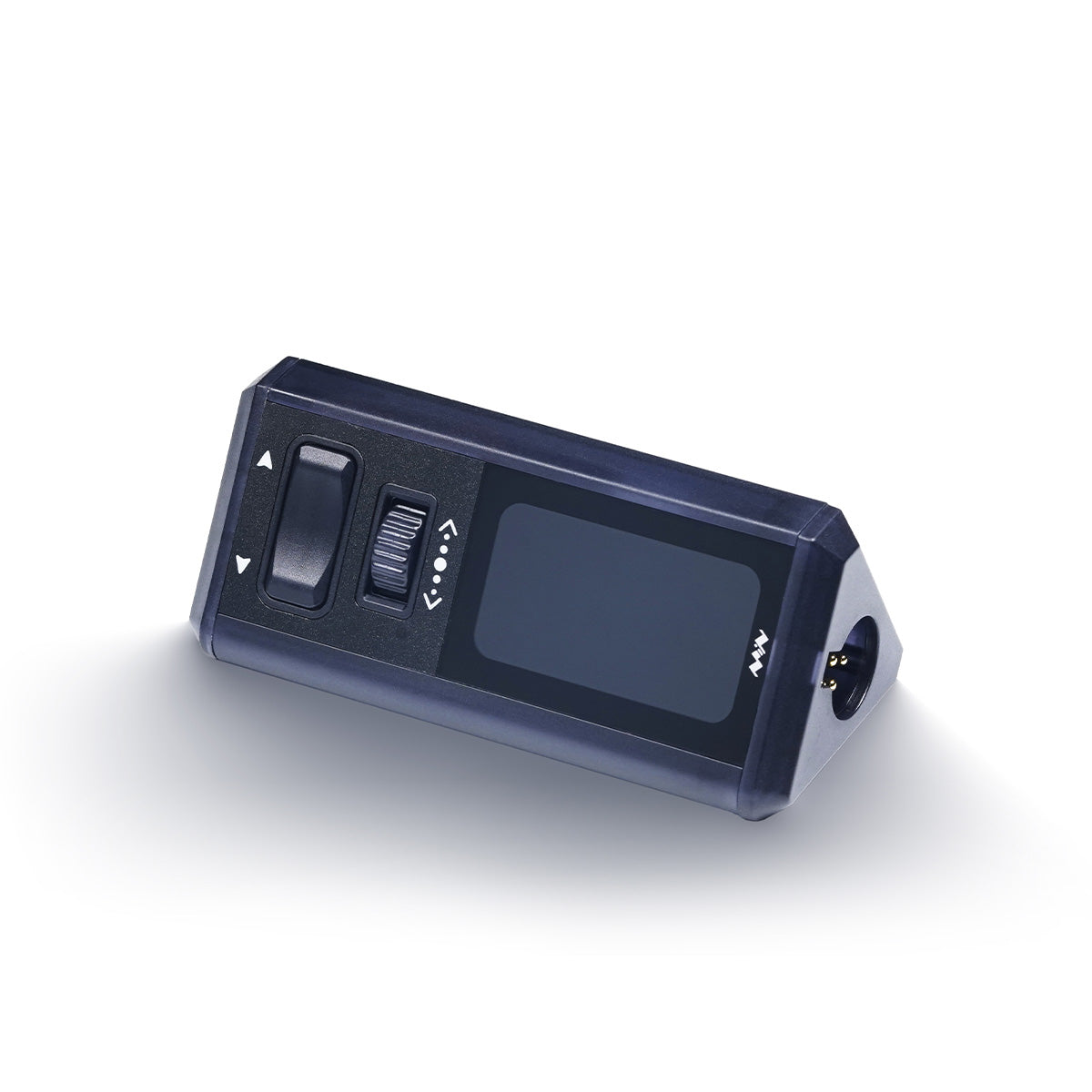

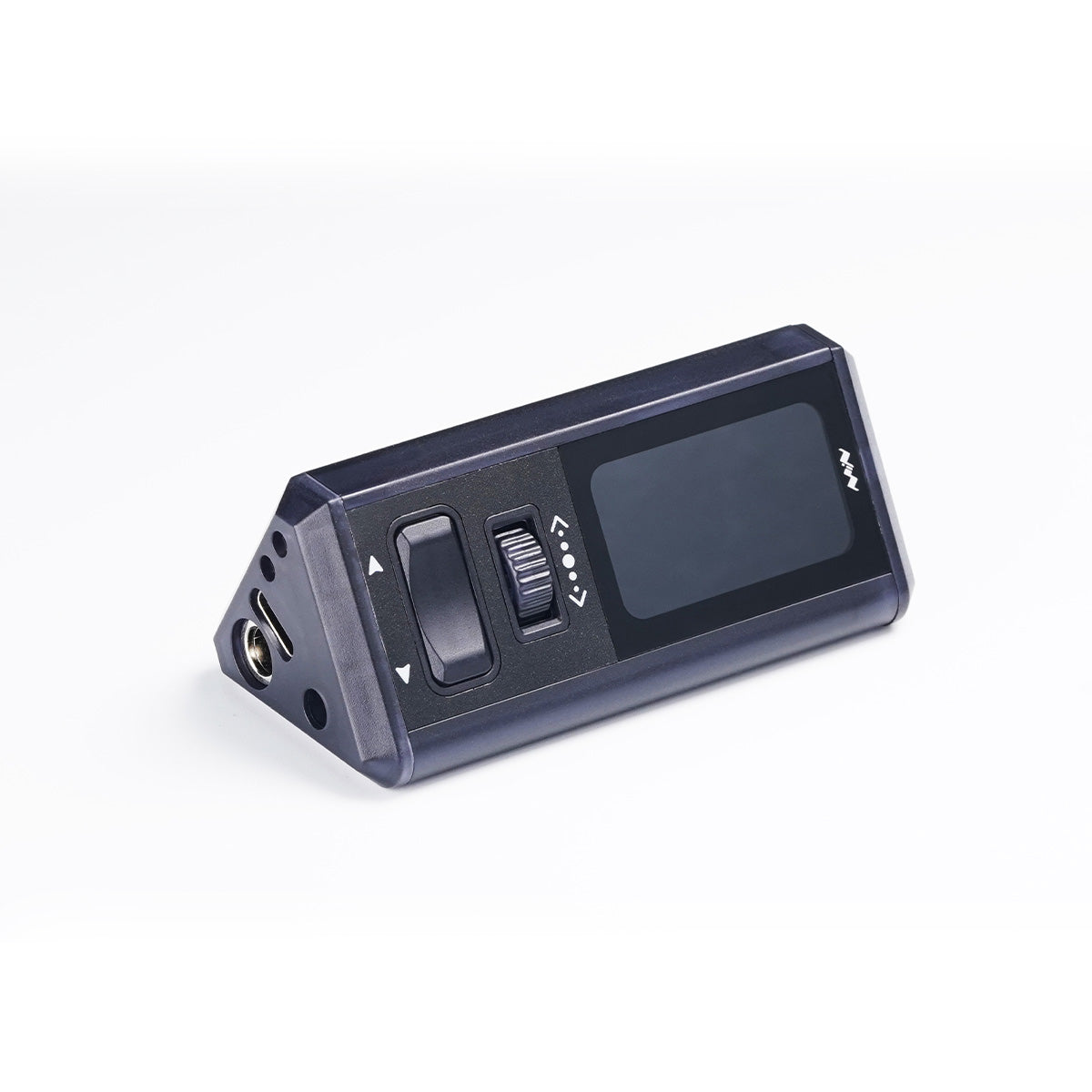

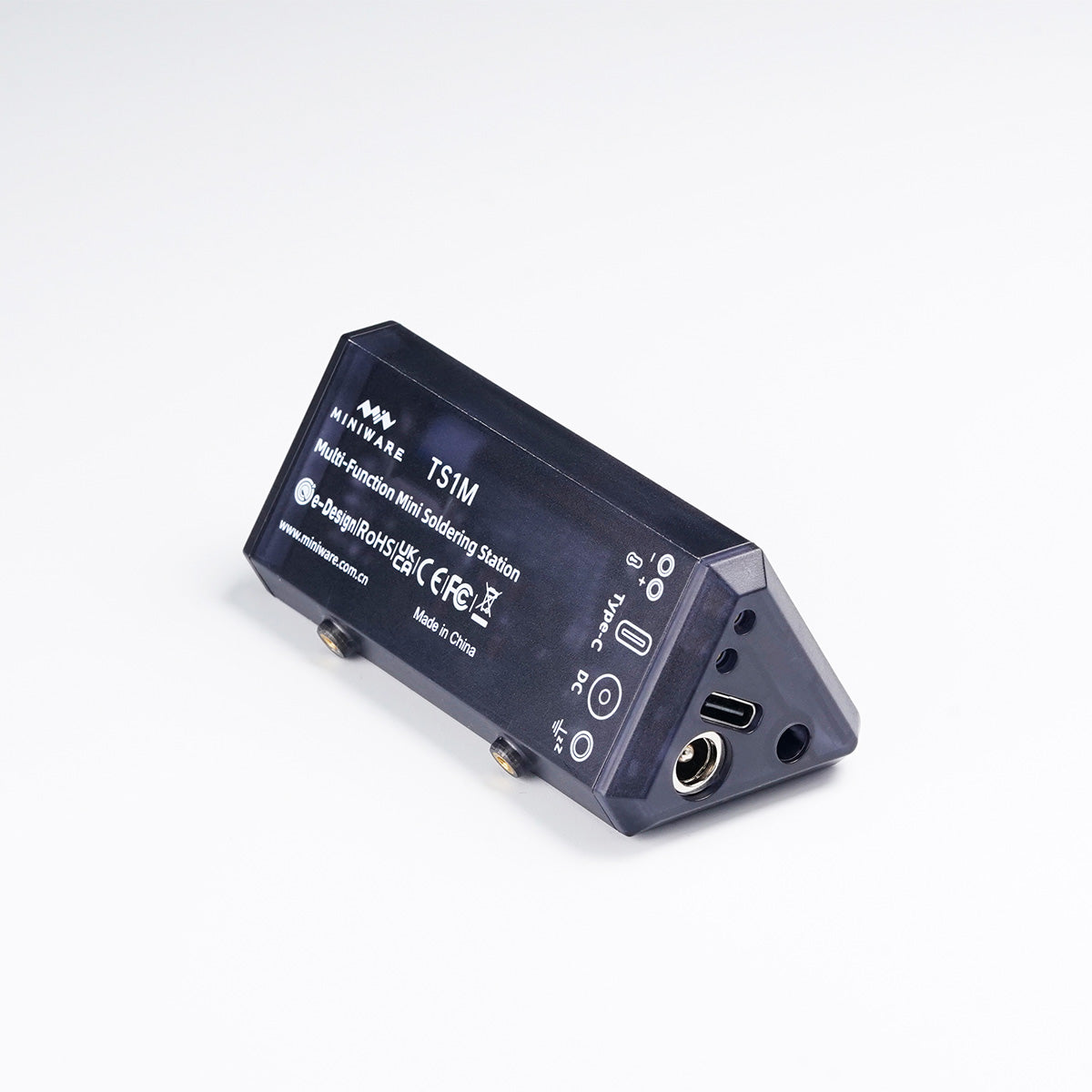

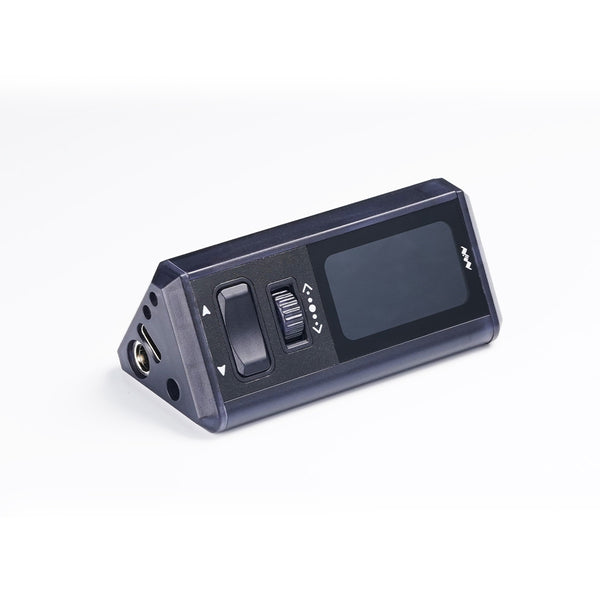

The TS1M Multi-Function Mini Soldering Station adopts a non-traditional design with a compact triangular body structure. The edges and corners are polished to retain the sense of geometric lines and have a good grip. A universal screw interface is set on the back to support external expansion. Equipped with a 1.47 inch 320×172 pixel true color screen, the interface is simple, and the temperature is displayed in real time. The scroll wheel + double button design is easy to use. The standby screen supports personalized LOGO settings to meet the user's personalized needs. Built-in simplified Chinese/English/Russian/German multi-language, the same firmware can be switched freely to adapt to users in different regions. The screen supports flipping to adapt to left-handed usage habits. In addition, the device can be upgraded through computer firmware, and supports modifying parameters in TXT documents to improve usage flexibility.

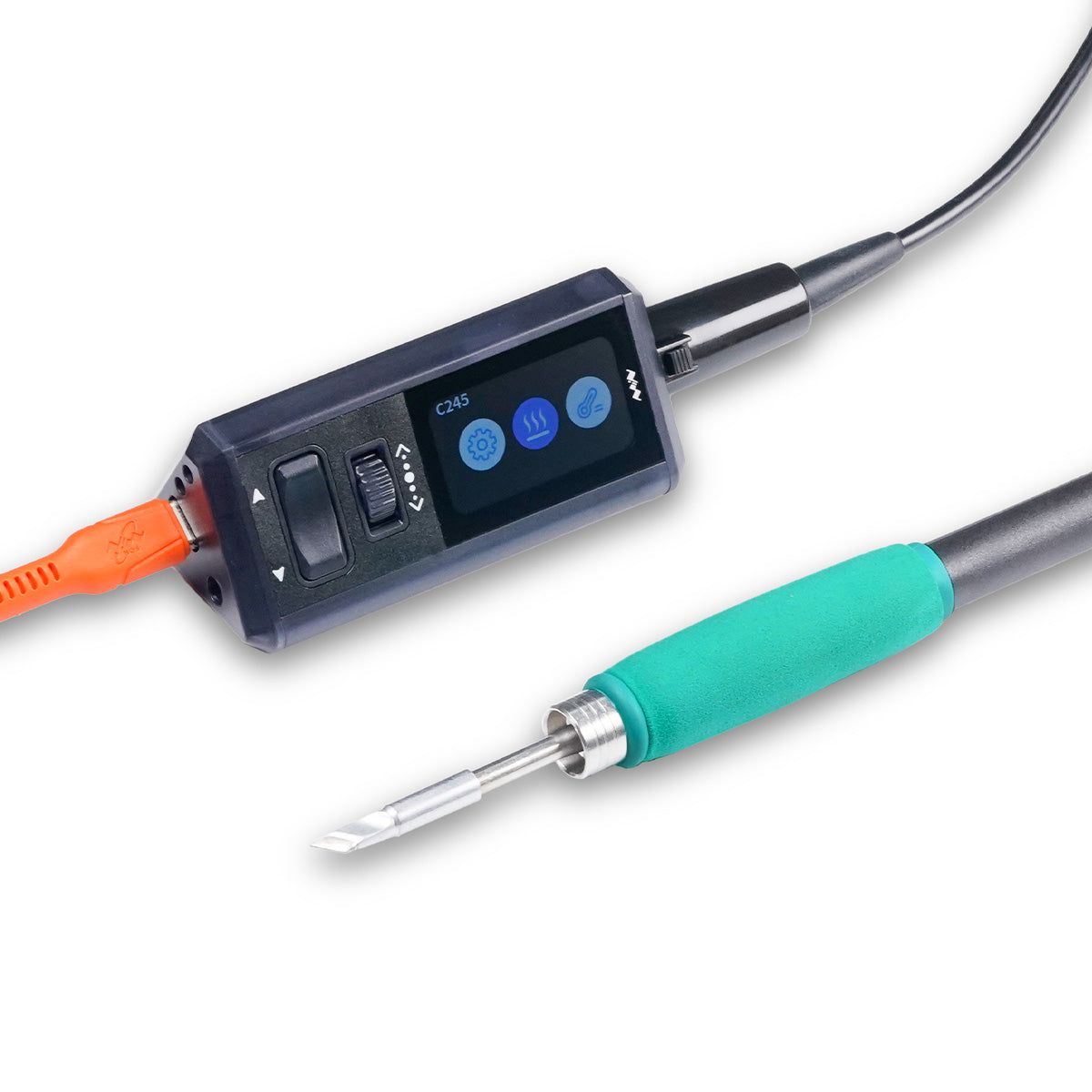

The TS1M Multi-Function Mini Soldering Station supports dual power supply mode and is compatible with the PD 3.1 fast charging protocol (12-28V voltage, maximum 140W power); when using DC power supply, the maximum power can be increased to 200W (12-28V). The temperature control range covers 100-450°C, which is suitable for multiple soldering scenarios. The device supports external thermocouple temperature measurement function, further expanding the application scenarios of soldering and temperature monitoring. In addition, TS1M is compatible with the 115 series (Not included, please purchase separately), 210 series, 245 series and MINIWARE digital handle series, realizing one machine for multiple uses and meeting long-term use needs.
The triangular mini soldering station is more than just a tool — it embodies MINIWARE’s commitment to innovation and design. Choosing the TS1M Multi-Functional Mini Soldering Station means choosing an efficient, convenient, and personalized soldering experience.
【KEY FEATURES】
➢ 200W maximum power, 210 series handle melts solder in just 3 seconds (From room temperature to 300℃)；
➢ Compatible with PD protocol, supports DC power and LIPO battery；
➢ Equipped with a temperature measurement function for real-time temperature monitoring；
➢ Intelligent tip detection prevents faulty tips from overheating;

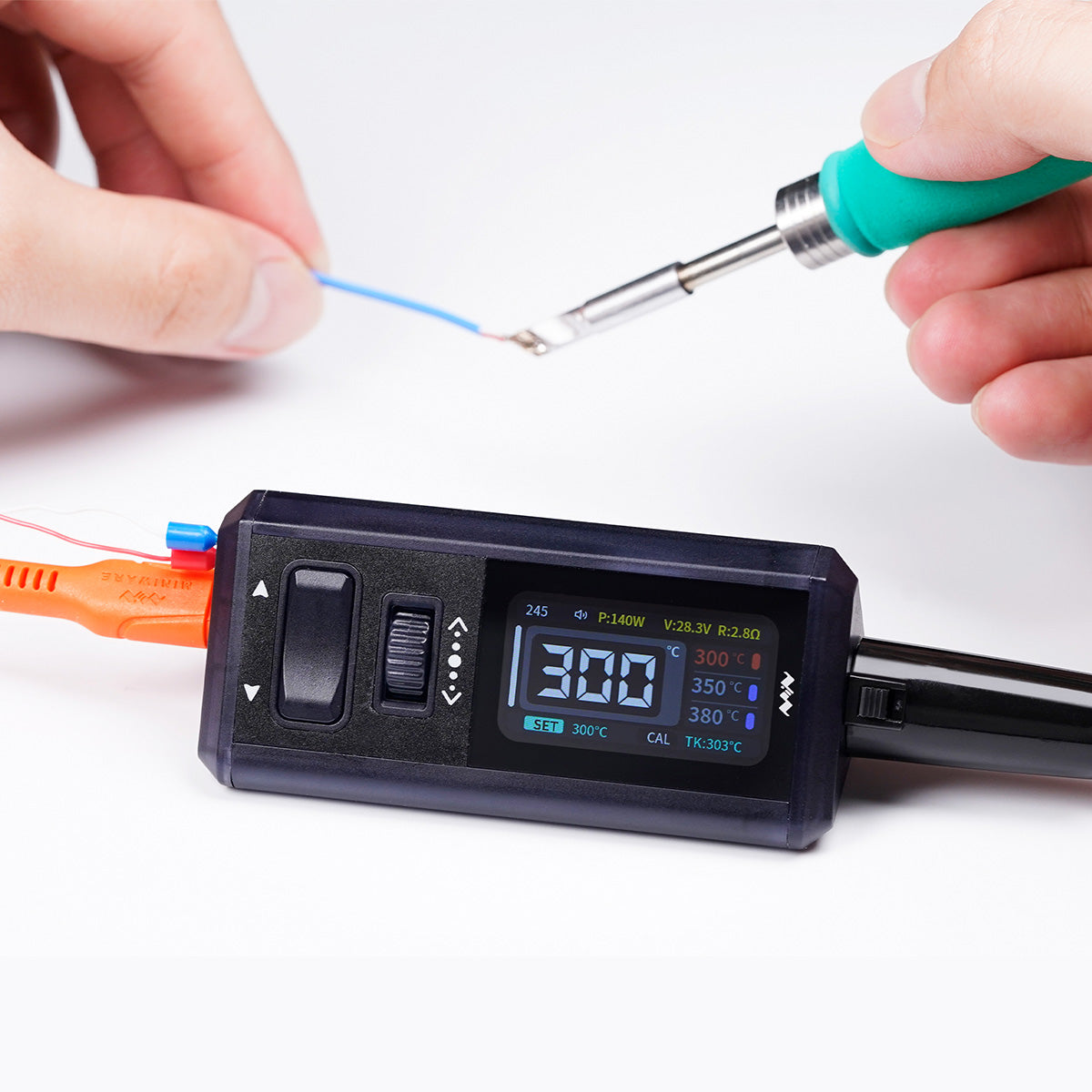

➢ Dual interface display: waveform display and pure digital display;
➢ 210 and 245 series soldering iron handles can be connected to the soldering iron stand via the sleep wire (Stand not included, purchase required) to enable the sleep function;
➢ Compatible with 210 series 245 series and MINIWARE digital handle series;

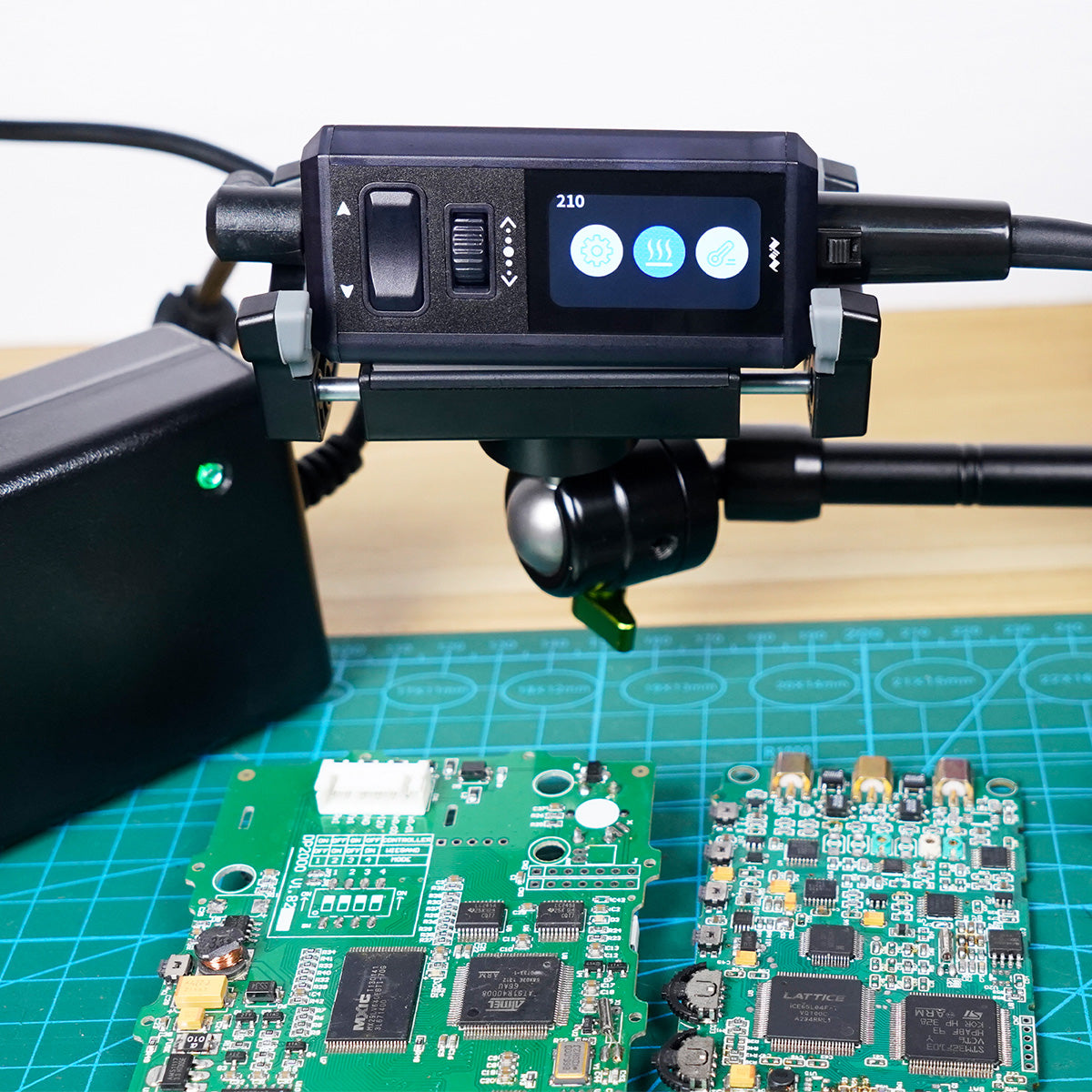

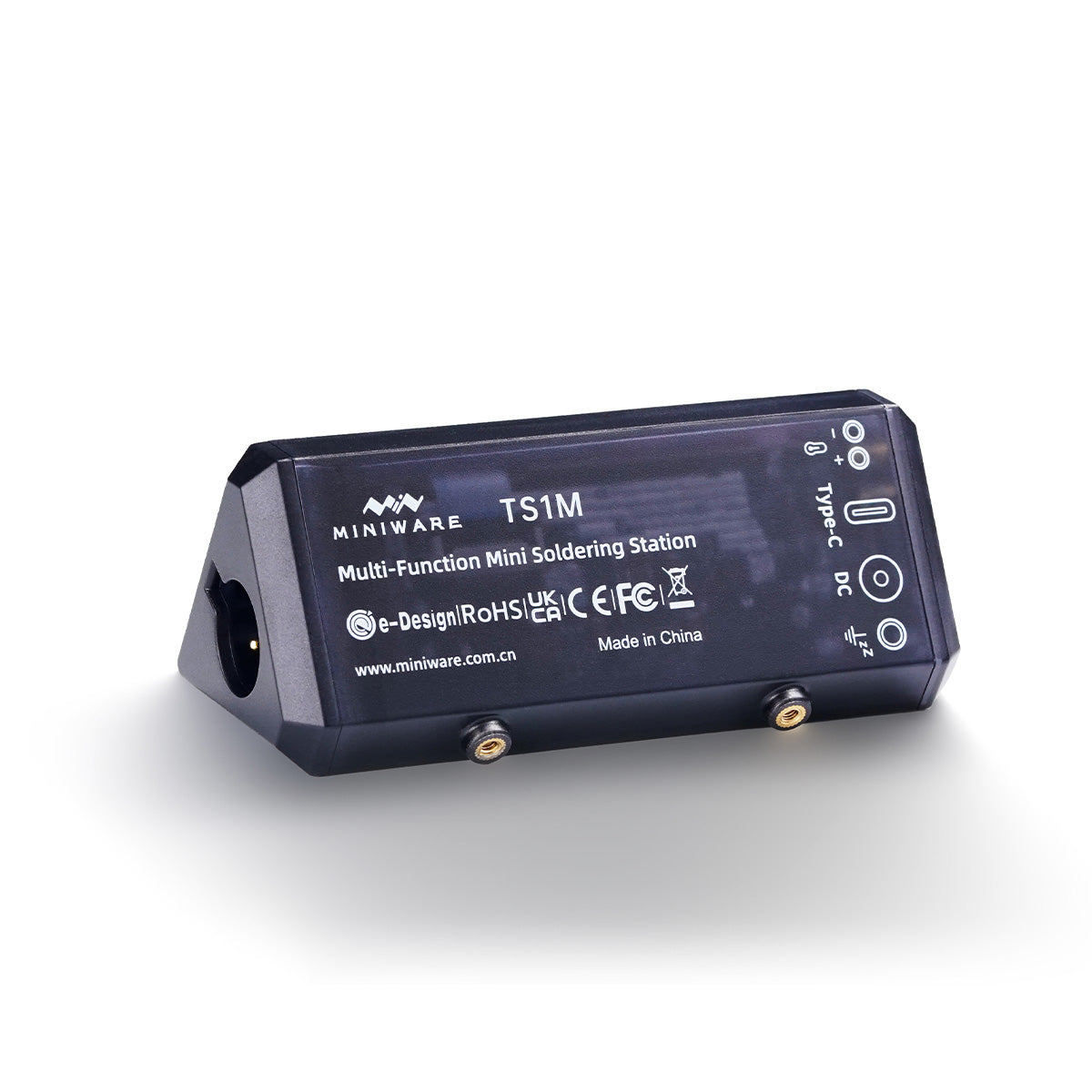

➢ Bottom expansion screw port for greater external connectivity options;
➢ Multi-language display: Chinese, English, Russian, German;
➢ Pocket-sized for easy storage and portability.

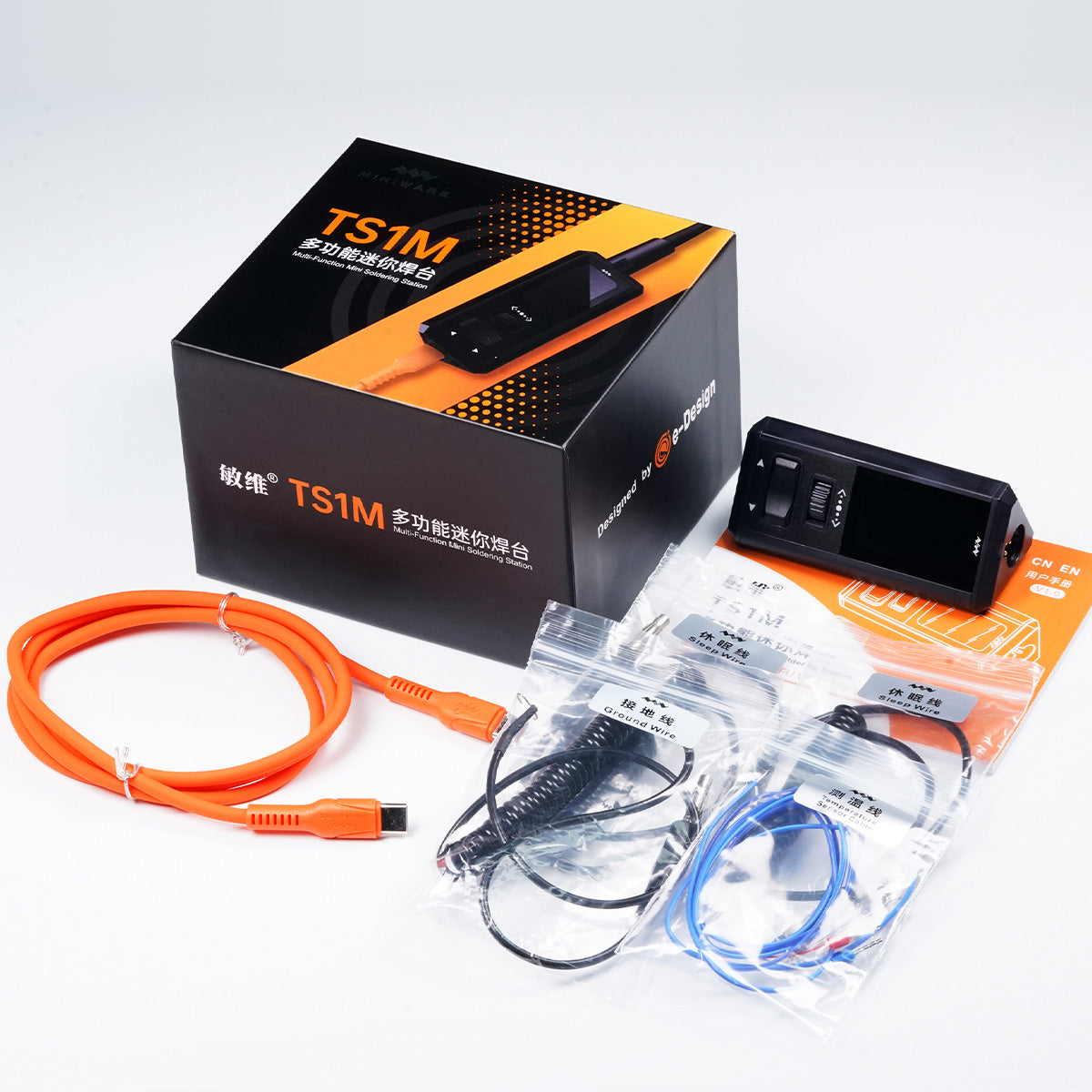

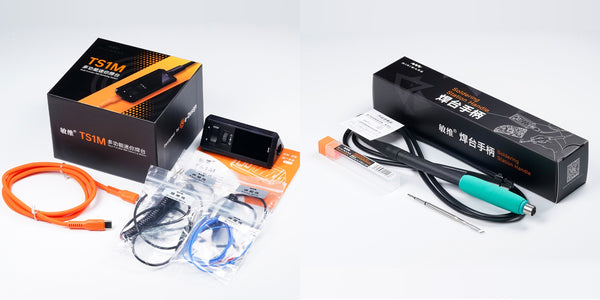

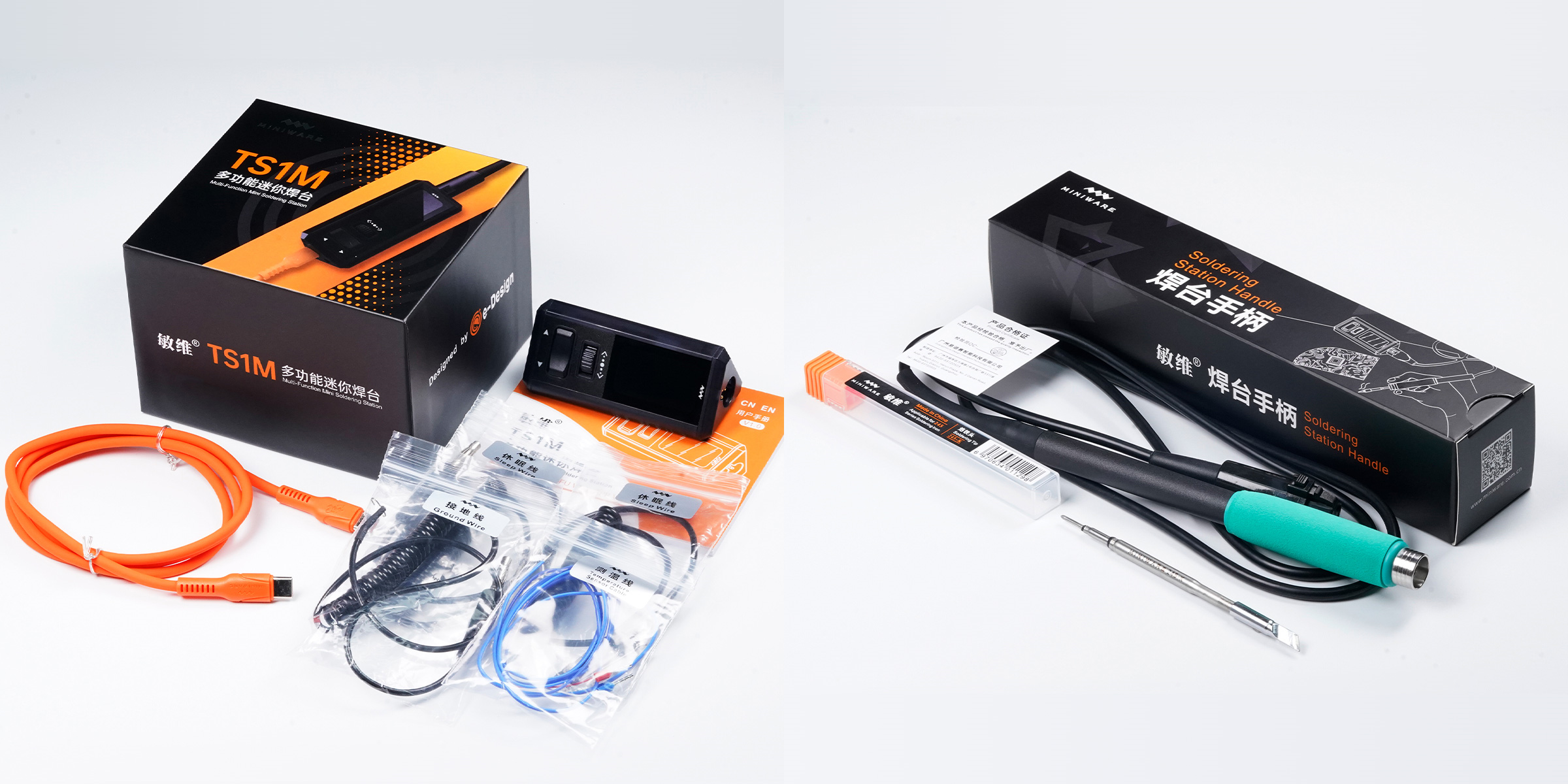

【Package Includes】
TS1M Multi-Function Mini Soldering Station Set： TS1M Controller x1
Temperature Sensor Cable x1
Sleep Wire x2
Ground Wire x1
USB-C to C Power Cable x1
User Manual x1

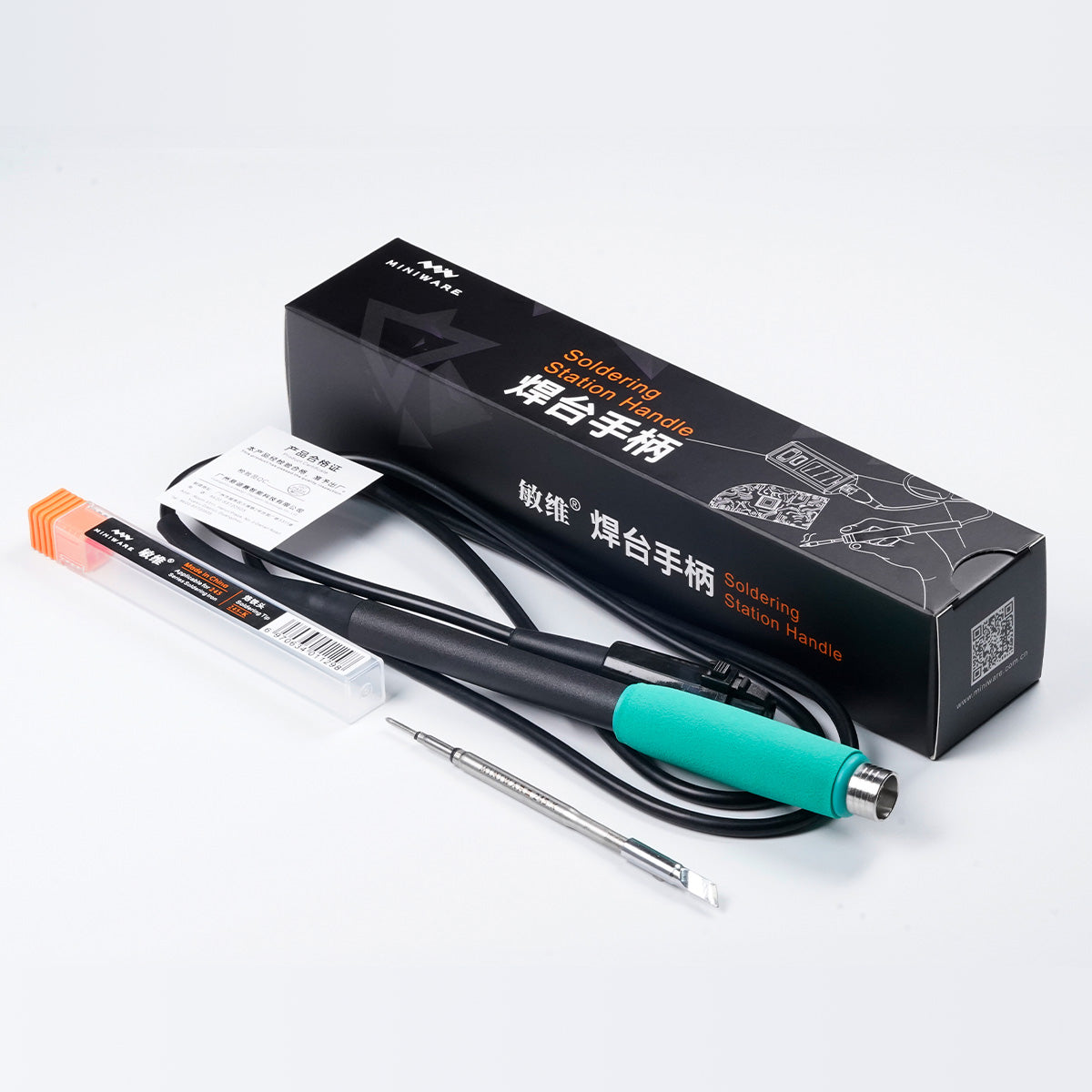

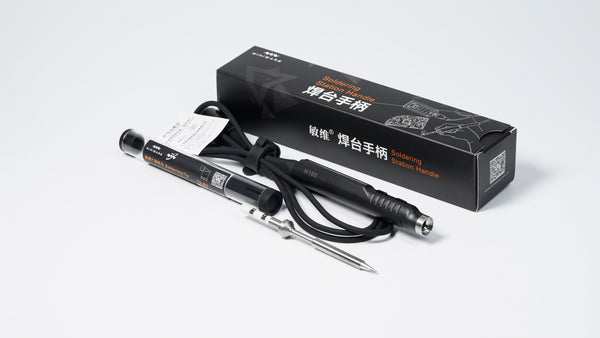

Handle + Soldering tip：（2 models available）

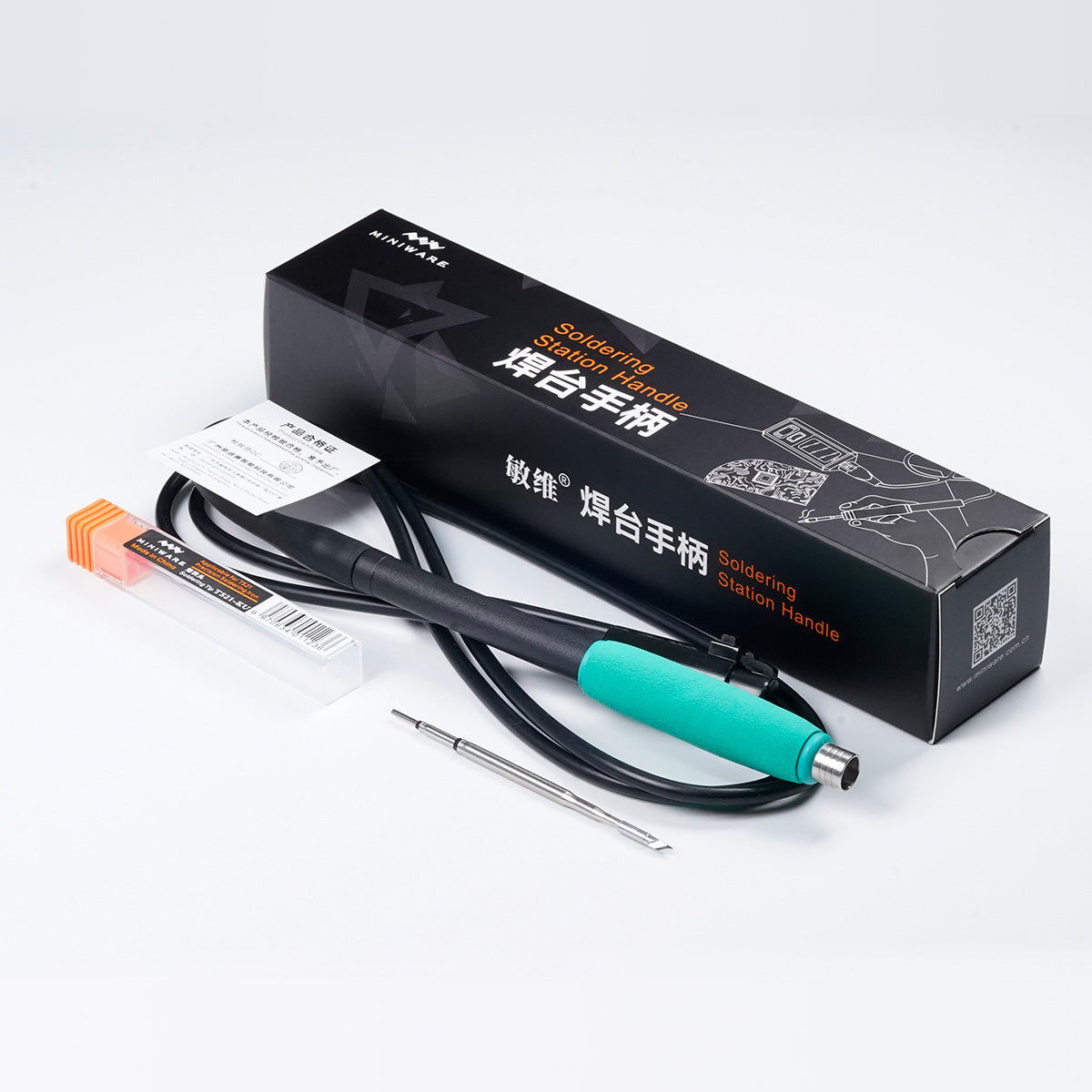

210 Series Handle Set
210 Soldering Iron Handle x1
210 Soldering Iron Tip（KU）x1
Or
245 Series Handle Set
245 Soldering Iron Handle x1
245 Soldering Iron Tip（K）x1
